Threaded Tips
Cadi Threaded Tips are highly customizable to fit a wide array of applications. Custom shapes and sizes are readily available. The standard material is RWMA Class 2 but other materials are available.
Threaded tips have a low profile for welds where space is at a premium. These electrodes can be used for welding at higher forces than parts with a standard taper. The threads allow for precise location each time the electrode is replaced.
The hexagonal profile of these tips allows users to easily remove the tip with standard shop tools. RWMA tapers may require a tip extractor tool to remove the tips with minimal damage to the tip.
|
Threaded Tips |
Shape |
Button |
Alloy |
Hex-Size |
Thread |
Height |
- |
Face |
Additional Info. |
|
|
H = Hex R = Round |
B = Button |
C15000 C18150 C18200 C18000 |
37 = 3/8” 43 = 7/16” 50 = 1/2” 56 = 9/16” 62 = 5/8” 75 = 3/4” |
25 = 1/4 - 20 31 = 5/16 -18 37 = 3/8 - 16 43 = 7/16 -14 |
25 = 1/4” 37 = 3/8” 43 = 7/16” 50 = 1/2” |
- |

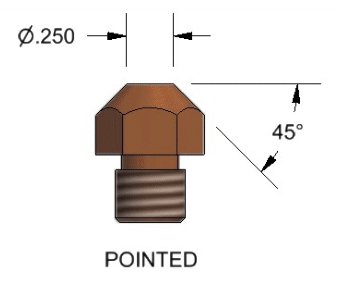

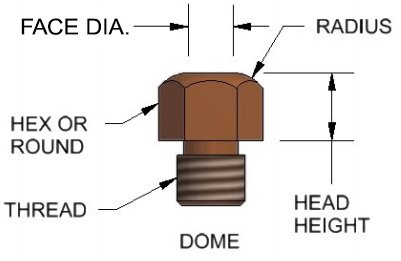

A = Pointed B = Dome C = Flat F = Radius
|
Diameter or Radius of Weld Face as Required. |
|
Example: |
H |
B |
182 |
50 |
37 |
37 |
- |
F |
2.0 (Radius Dia.) |
