Single Bend Electrodes

product image
left arrow right arrow

Cadi manufactures single bend electrodes from standard RWMA Class 2 straight electrodes. Single bend electrodes may be ordered in all standard nose designs and as a special item in either RWMA Class 1 or 3. Single bend electrodes are available in a wide variety of lengths and offsets. 4RW and 5RW tapers are available. Special shapes and sizes are available. Bent electrode overall length may vary ±1/16”. (REF) “Y” DIM=1/16” Increments.





PART NUMBER

OVERALL LENGTH (A)

TAPER   (B)

ANGLE

 (C)

OFFSET    (D)

STRAIGHT LENGTH  (E)

NOSE TYPE

(F)

CA2407-S-15-4-5

1 3/4

4RW

15°

1/4

5/8

A = POINTED



(See example below for other nose types)

CA2412-S-15-4-15

3

4RW

1/4

1 7/8

CA2416-S-15-13-5

4

4RW

13/16

5/8

CA2508-S-15-4-7

2

5RW

1/4

7/8

CA2512-S-15-4-15

3

5RW

1/4

1 7/8

CA2515-S-15-10-8

3 3/4

5RW

5/8

1

CA2408-S-30-7-6

2

4RW

30°

7/16

3/4

CA2412-S-30-7-14

3

4RW

7/16

1 3/4

CA2415-S-30-23-7

3  3/4

4RW

1 7/16

7/8

CA2508-S-30-9-7

2

5RW

9/16

7/8

CA2512-S-30-9-15

3

5RW

9/16

1 7/8

CA2515-S-30-24-8

3   3/4

5RW

1  1/2

1

CA2407-S-45-10-6

1  3/4

4RW

45°

5/8

3/4

CA2412-S-45-12-15

3

4RW

3/4

1  7/8

CA2413-S-45-33-6

3  1/4

4RW

2  1/16

3/4

CA2508-S-45-17-7

2

5RW

1  1/16

7/8

CA2512-S-45-17-13

3

5RW

1  1/16

1  5/8

CA2515-S-45-33-8

3  3/4

5RW

2  1/16

1

CA2408-S-60-23-7

2

4RW

60°

1  7/16

7/8

CA2412-S-60-23-15

3

4RW

1  7/16

1  7/8

CA2411-S-60-40-7

2  3/4

4RW

2  1/2

7/8

CA2510-S-60-25-9

2  1/2

5RW

1  9/16

1  1/8

CA2513-S-60-25-15

3  1/4

5RW

1  9/16

1  7/8

CA2512-S-60-38-10

3

5RW

2  3/8

1  1/4

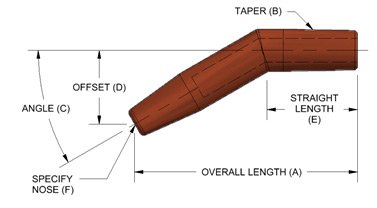

CADI PART NUMBER EXAMPLE:         CA2512-S-45-9-10

(F)

Nose



 (B)

Taper

 (A)

Overall Length



(C)

Angle of Offset

   (D)

 Offset

 (E)

Straight Length

A

2

5

12

S

45

9

10

A = Pointed Nose (other nose types: B = Dome, C = Flat, D = Offset, E = Truncated, F = Radius)

Class 2 Material,
other materials available

5RW Taper
4=4RW= (1MT)
5=5RW=(2MT)

12=3”
Overall Length
in 1/4” increments

Single Bend

45° Angle



9/16 Offset in 1/16” increments

5/8 straight length in 1/8” increments
