DISPERSION STRENGTHENED COPPER
Dispersion Strengthened Copper
Dispersion Strengthened Copper is a family of copper-based metal matrix composite alloys dispersed with aluminum oxide.
C15760, RWMA Class 20, AWS J1.3, Glidclop™ Al-60
C17515, RWMA Class 21, AWS J1.3, Glidclop™ Al-15
C15725, RWMA Class 22, AWS J1.3, Glidclop™ Al-25
Overview:
C15760 / Glidclop™ Al- 60 is designed for applications needing the highest elevated temperature strength along with relatively high electrical and thermal conductivity. It maintains a high degree of resistance to softening after being exposed to elevated temperatures. It has sufficient ductility for further cold working such as heading, drawing, and rolling operations. Available with or without oxygen free copper cladding. The properties are consistent with RWMA Class 20 specifications. Aluminum 0.60%, Copper balance. Typical usages are listed below.
C17515 / Glidclop™ Al-15 is designed for applications needing the highest electrical and thermal conductivities along with good, elevated temperature strength. Excellent for cold working and can be drawn into fine wire or rolled into thin sheets. Available with or without oxygen free copper cladding. The properties are consistent with RWMA Class 21 specifications. Aluminum 0.15%, Copper balance.
C15725 / Glidclop™ Al-25 is designed for applications needing high electrical and thermal conductivity along with good, elevated temperature strength. Excellent cold working characteristics and can be drawn into fine wire or rolled into thin sheets. Available with or without oxygen free copper cladding. The properties are consistent with RWMA Class 22 specifications. Aluminum 0.25%, Copper balance.
|
Chemical Compositions of RWMA Materials Group C - Specialty Materials |
||||||
|
RWMA Class |
UNS Number |
Description |
Cu |
Fe |
Pb |
Al |
|
20 |
C15760 |
Dispersion Strengthened Copper |
Balance |
0.01% max. |
0.01% max. |
0.58 -0.62% as Al Oxide |
|
21 |
C17515 |
Dispersion Strengthened Copper |
Balance |
0.01% max. |
0.01% max. |
0.3% as Al Oxide |
|
22 |
C15725 |
Dispersion Strengthened Copper |
Balance |
0.01% max. |
0.01% max. |
0.5% as Al Oxide |
Cu: Copper
Fe: Iron
Pb: Lead
Al: Aluminium
Typical Uses:
Typical uses of C15760, Glidclop™ Al-60, RWMA Class 20 copper alloy: is suited for welding of metallic coated metal such as galvanized steel, terne plates.
Typical uses of C15715, Glidclop™ Al-15, RWMA Class 21 copper alloy: is suited for circuit package components, electrical components, rotating equipment.
Typical uses of C15725, Glidclop™ Al-25, RWMA Class 22 copper alloy: is suited for medical device components, heat exchangers, electrodes.
|
GENERAL USES OF: |
DISPERSION STRENGTHENED COPPER |
||
|
Back-up Electrodes |
Caps & Shanks |
Circuit Breaker Parts |
Connectors |
|
Cross Wire Welding |
Electrical & Mechanical Power Components |
Flash & Butt Welding Dies |
Heat Flux Components |
|
Joining Components |
Threaded Electrodes |
|
|
| Item Name: | Dispersion Strengthened Copper |

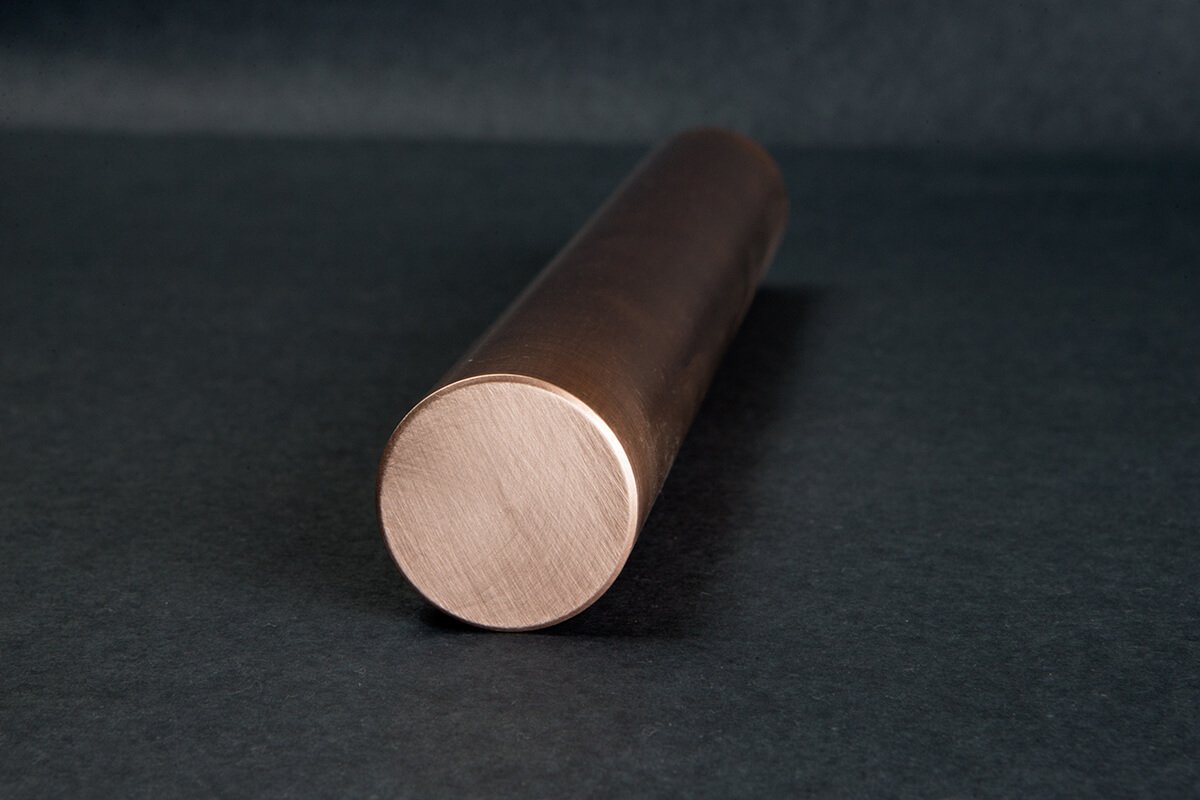

| Shape: |
Bar |
| RWMA (Resistance Welding Manufacturing Alliance) Class: | Class 20, 21, 22 |
| Principal Element: | Cu, Al oxide |
| Minimum Hardness Rockwell (up to 1" dia.): |
C15760 HRB 75 C15715 HRB 63 C15725 HRB 69 |
| Minimum Electrical Conductivity (% IACS): |
C15760 75% C15715 88% C15725 85% |
Quality Assurance
Quality Policy: Cadi Company Inc. is dedicated to world-class excellence. Our commitment is to continually achieve the highest standards required to meet our customer’s needs. Cadi is committed to a policy of continuous improvement within all areas of the organization through customer communication, by means of quality planning and review, as well as employee training and participation to achieve the Cadi commitment goal of 100% in quality, effectiveness, and customer satisfaction.
Quality Objectives: Cadi Company, Inc. is committed to the development and implementation of the ISO Quality Management System. We pledge that through the efforts of all our employees working together as a team, we will continually strive to be a leader (in our markets) in satisfying our customers’ needs with regard to service, performance, and competitive pricing. Cadi shall maintain global and domestic sources to provide quality products as required by our customers. Cadi will provide our customers with the highest level of satisfaction by achieving the goal of 100% in the areas of product quality and on-time delivery performance.
Cadi Company is committed to providing goods and services that meet or exceed our customer’s requirements and expectations. It is our firm belief that this dedication to the highest standards is the cornerstone of our existence.
- We have the equipment and processes to guarantee the quality of the products we manufacture.
- We continually upgrade our equipment and have ongoing training company-wide.
- Each order undergoes stringent Quality Assurance Processes to assure accuracy and precision to the client’s specifications and is verified throughout the manufacturing cycle with scheduled quality assurance audits.
- All material is subject to detailed physical tests where microstructures, tensile, yield strength, U.T. testing, eddy current conductivity, elongation, and hardness are measured and reported.
- Climate-controlled inspection facility.
- We have a Metallurgical Engineer on-site for any technical questions.
To ensure Cadi follows rigorous quality and procedural protocols we are ISO 9001:2015 Certified and have been for over 18 years.
| ISO Certification: | 9001:2015 (Registration # 10002745 QM15 Valid until 2027-08-21) |
| Reports: | Certification of Compliance Chemical Analysis Final Inspection Material Test Reports |
| Mechanical and Physical Testing: | Elongation Grain Size Hardness Tensile Yield |
| Nondestructive Testing: | Chemical Analysis Conductivity Liquid Penetrant Ultrasonic X-Ray |
| Alloy Applications Cross Reference Chart | C15000 | C18150 | C18000 | C18200 | C17510 | C17200 | C15760 |
| Axial Conductors | X | - | - | - | - | - | - |
| Back-up Electrodes | X | X | X | X | X | X | X |
| Bushings | X | X | X | X | X | - | - |
| Caps & Shank | X | X | X | X | X | X | X |
| Casting Wheels | X | X | - | X | - | - | - |
| Casting Wheels and Dam Blocks | - | - | X | - | X | X | - |
| Centrifugal Casting Mold | X | X | X | X | - | - | - |
| Circuit Breaker Parts | X | X | - | X | - | - | X |
| Collector Connector | X | X | - | X | - | - | - |
| Collector Housing | X | X | - | X | - | - | - |
| Connector Bar | X | X | - | X | - | - | - |
| Connectors | X | X | X | X | X | - | X |
| Connection Lead Bar | X | X | - | X | - | - | - |
| Continuous Casting Molds | X | X | X | X | X | X | - |
| Cross Wire Welding Electrodes & Components | X | X | X | X | X | X | X |
| Damper Ring/Finger | X | X | X | X | - | - | - |
| Dies & Fixtures | X | X | X | X | X | X | - |
| Die Casting Pistons | - | - | X | - | X | X | - |
| Die Casting Plunger Tips | - | - | X | - | X | X | - |
| Electrode Holders & Adaptors | X | X | X | X | X | X | - |
| Electrical & Mechanical Power Components | X | X | X | X | X | X | X |
| Flash & Butt Welding Dies | X | X | X | X | X | X | X |
| Flexible Connector | X | X | - | X | - | - | - |
| Heat Flux Components | X | X | X | X | X | - | X |
| Injection Blow Molds & Dies | - | X | X | X | X | X | - |
| Joining Components | X | - | X | - | X | X | X |
| Lead Conductor Bar | X | X | - | X | - | - | - |
| Motor End Rings | X | X | X | X | X | - | - |
| Neutral Bus Bar | X | X | - | X | - | - | - |
| Non-Sparking Applications | - | X | X | X | X | X | - |
| Nut & Stud Welding Electrodes | X | X | X | X | X | X | - |
| Performance Engine Components | - | - | X | - | X | X | - |
| Permanent Molds | - | - | X | - | X | X | X |
| Power Generation Products | X | X | X | X | - | - | - |
| Power Semiconductor Bases | X | X | - | X | - | - | - |
| Resistance Welding Electrodes | X | X | X | X | X | X | - |
| Rotor Coil Bar | X | X | - | X | - | - | - |
| Seam Weld Wheels | X | X | X | X | X | X | - |
| Series Loop Segment | X | X | - | X | - | - | - |
| Shafts | X | X | X | X | X | X | - |
| Slip Rings | X | X | - | X | - | - | - |
| Slot Wedge | X | X | X | X | - | - | - |
| Snap Rings | X | X | - | X | - | - | - |
| Special Nipple | X | X | - | X | - | - | - |
| Sputtering Target Backing Plate | X | X | X | ||||
| Terminal Box Connectors | X | X | - | X | - | - | - |
| Threaded Electrodes | X | X | X | X | X | X | - |
| Transmission Devices | X | X | - | X | - | - | X |
| Water Clip | X | X | - | X | - | - | - |
| Wear Plates | - | - | - | - | - | X | - |
| Welding Arms | X | X | X | X | X | X | - |
| Welding Blocks | X | - | X | - | X | X | - |
| Welding Connectors | X | X | X | X | X | X | - |
| Welding Platens | X | X | X | X | X | X | - |
Other References for C15760: Glidclop™ Al-60, Glid Clop™ Al-60, UNS C15760, CDA C15760, RWMA Class 20, Class 20 Copper Alloy, CuAl Alloy, Cu Al Copper Alloy.
Other References for C17515: Glidclop™ Al-15, Glid Clop™ Al-15, UNS C15715, CDA C15715, RWMA Class 21, Class 21 Copper Alloy.
Other References for C17525: Glidclop™ Al-25, Glid Clop™ Al-25, UNS C15725, CDA C15725, RWMA Class 22, Class 22 Copper Alloy.
